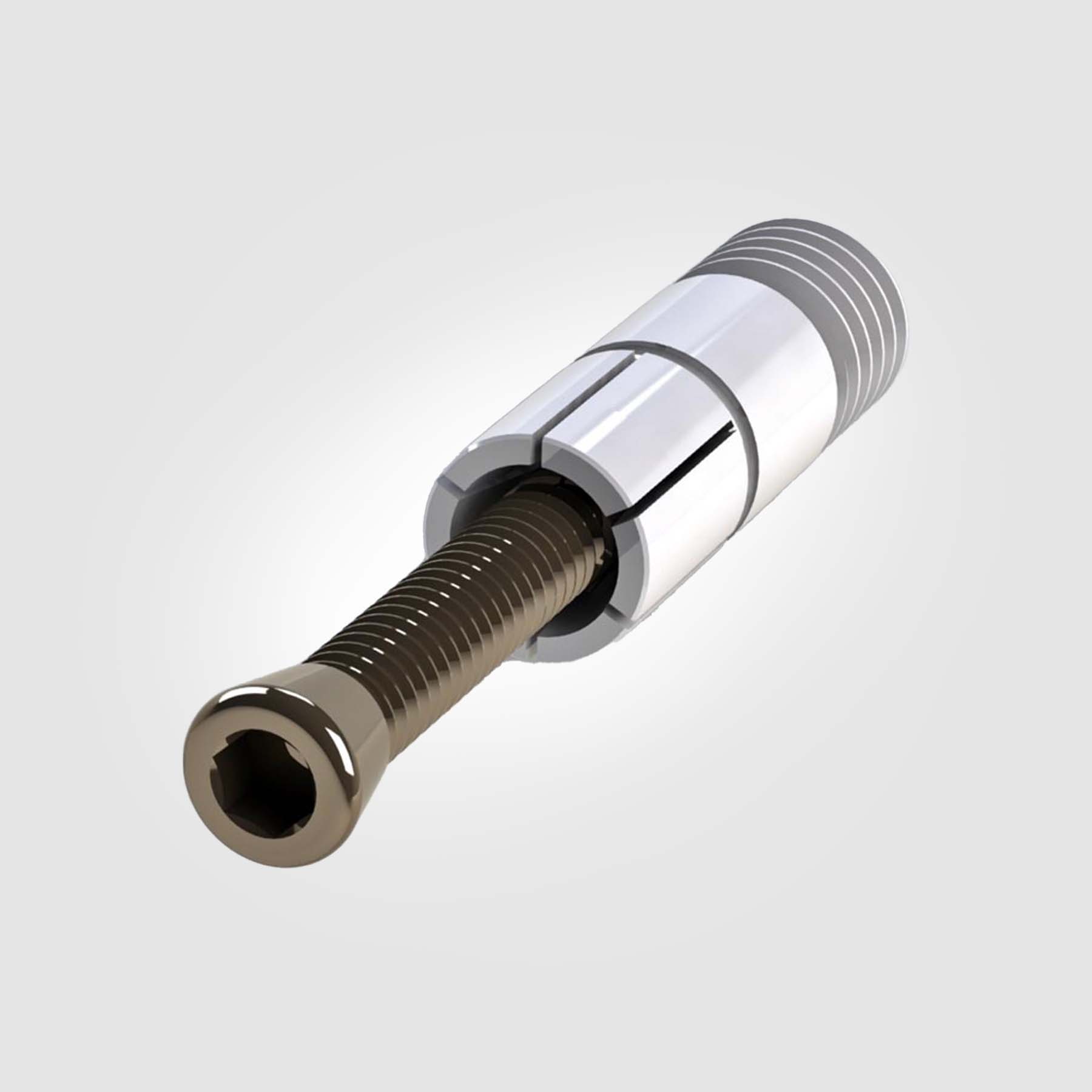

Modular XYZ Xpansion™ Clamps (Threaded Pins)
#All
TITAN's go-to clamps for advanced fixturing and workholding setups!
- For Tombstone, Grid Plate and Fixture Plate applications
- Installed in a drilled and reamed hole for precise location
- Set in a hardened drill bushing for additional strength and wear resistance
- If precise location is not necessary, pin can be used on top of fixture plate
- Note: If recessing pin into fixture beyond slits, be sure to provide clearance for expanding segments
#174PHExternalThread1213
Technical Data
- Feature: Threaded Pin
- Quantity: 1
- [F] Clamp Diameter: 0.413"
- External Thread: 1/2-13
- Screw Size: 1/4-20
- Max Torque: 13.3 ft-lbs
- Holding Force: 1900 lbs
Country of Origin: United States of America.
#174PHExternalThread5811
Technical Data
- Feature: Threaded Pin
- Quantity: 1
- [F] Clamp Diameter: 0.472"
- External Thread: 5/8-11
- Screw Size: 5/16-18
- Max Torque: 27.6 ft-lbs
- Holding Force: 2500 lbs
Country of Origin: United States of America.
#174PHExternalThreadM12
Technical Data
- Feature: Threaded Pin
- Quantity: 1
- [F] Clamp Diameter: 10.500mm
- External Thread: M12 x 1.750mm
- Screw Size: M6
- Max Torque: 17 N.m
- Holding Force: 8455 N
Country of Origin: United States of America.
#174PHExternalThreadM16
Technical Data
- Feature: Threaded Pin
- Quantity: 1
- [F] Clamp Diameter: 12.000mm
- External Thread: M16 X 2.000mm
- Screw Size: M8
- Max Torque: 34 N.m
- Holding Force: 11125 N
Country of Origin: United States of America.
