Modular Pitbull® Clamps (Compact or Slotted, Multiple Sizes)

#All

TITAN's go-to clamps for advanced fixturing and workholding setups!

#KnifeEdgeMediumCompact516

• Ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece
• The back of the clamp is ground square to the bottom for precise location of parts
• The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp
• Tungsten Carbide coating can be added to increase holding force

Technical Data

• Quantity: 1
• Feature: Knife Edge

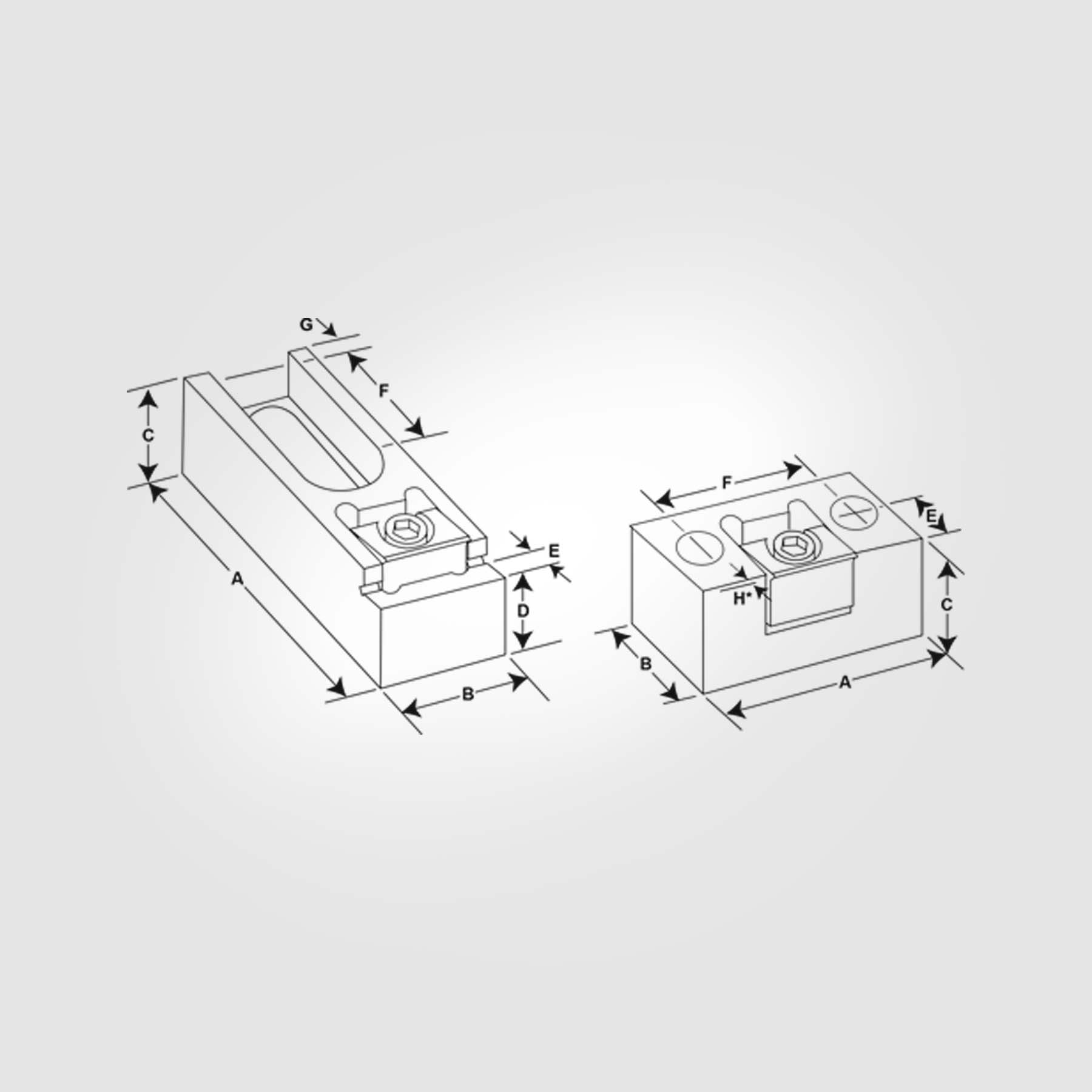

• [H] Clamp Travel: 0.024"
• Mounting Screws: 5/16"
• Screw Size: 5/16"
• Max Torque: 14.5 ft-lb
• Holding Force: 3600 lbs

Country of Origin: United States of America.

#KnifeEdgeLargeCompact38

• Ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece
• The back of the clamp is ground square to the bottom for precise location of parts
• The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp
• Tungsten Carbide coating can be added to increase holding force

Technical Data

• Quantity: 1
• Feature: Knife Edge
• [H] Clamp Travel: 0.050"
• Mounting Screws: 3/8"
• Screw Size: 3/8"
• Max Torque: 30 ft-lb
• Holding Force: 6000 lbs

Country of Origin: United States of America.

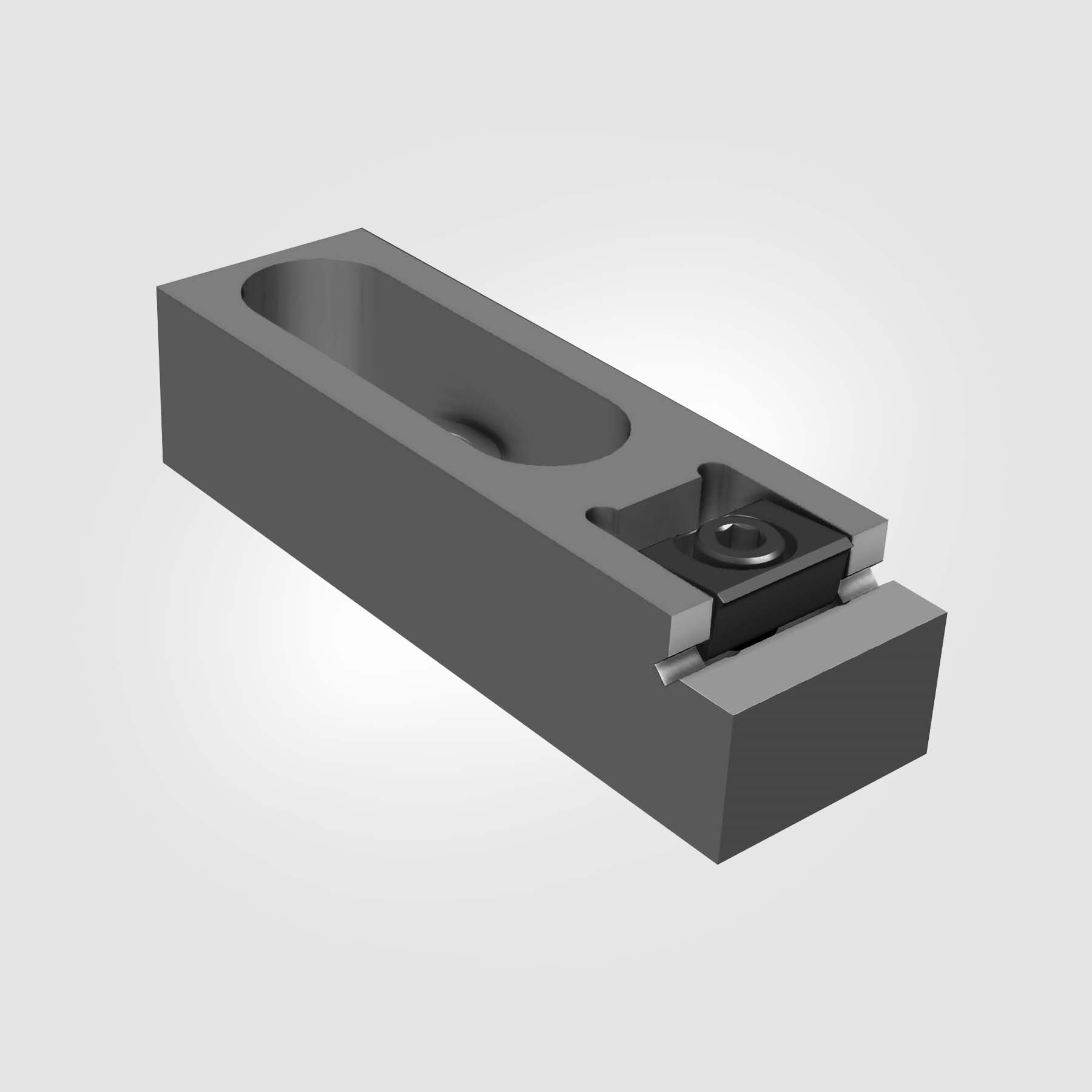

#KnifeEdgeMediumSlotted12

• Increased versatility through its unique riser design
• Supports the work piece off the machine table for through milling and drilling
• Designed for use on work cubes and machine tables with tapped holes or T-slot configurations

Technical Data

• Quantity: 1
• Feature: Knife Edge
• Slot: Closed
• [H] Clamp Travel: 0.024"
• Mounting Screws: 1/2"
• Screw Size: 1/2"
• Max Torque: 14.5 ft-lb
• Holding Force: 3600 lbs

Country of Origin: United States of America.

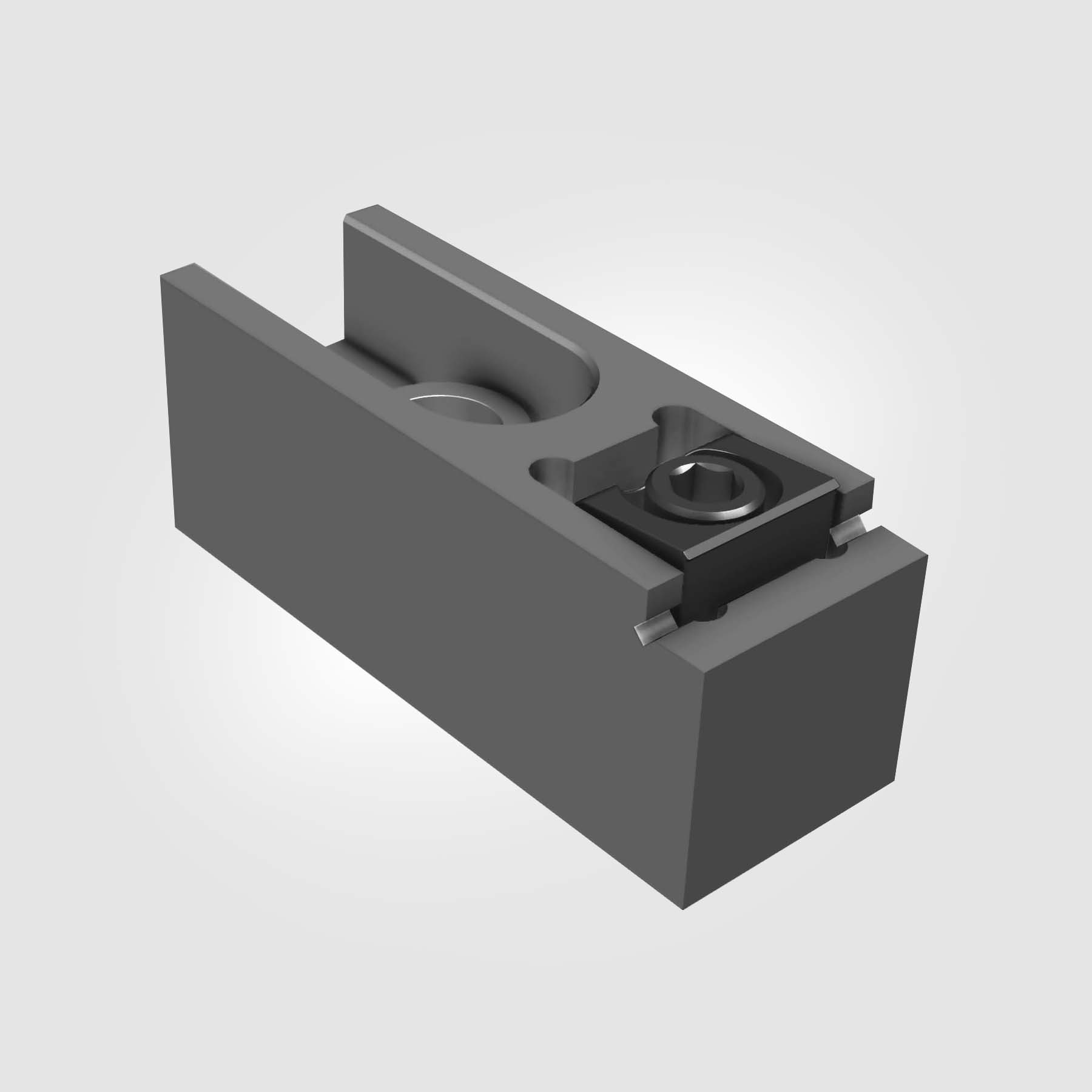

#KnifeEdgeLargeSlotted58

• Increased versatility through its unique riser design
• Supports the work piece off the machine table for through milling and drilling
• Designed for use on work cubes and machine tables with tapped holes or T-slot configurations

Technical Data

• Quantity: 1
• Feature: Knife Edge
• Slot: Closed
• [H] Clamp Travel: 0.050"
• Mounting Screws: 5/8"
• Screw Size: 5/8"
• Max Torque: 30 ft-lb
• Holding Force: 6000 lbs

Country of Origin: United States of America.

#KnifeEdgeMediumCompactM8

• Ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece
• The back of the clamp is ground square to the bottom for precise location of parts
• The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp
• Tungsten Carbide coating can be added to increase holding force

Technical Data

• Quantity: 1
• Feature: Knife Edge
• [H] Clamp Travel: 0.024"
• Mounting Screws: 5/16"
• Screw Size: M8
• Max Torque: 22.5 N.m
• Holding Force: 16000 N

Country of Origin: United States of America.

#KnifeEdgeLargeCompactM10

• Ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece
• The back of the clamp is ground square to the bottom for precise location of parts
• The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp
• Tungsten Carbide coating can be added to increase holding force

Technical Data

• Quantity: 1
• Feature: Knife Edge
• [H] Clamp Travel: 0.050"
• Mounting Screws: 3/8"
• Screw Size: M10
• Max Torque: 40.6 N.m
• Holding Force: 26000 N

Country of Origin: United States of America.

#KnifeEdgeMediumSlottedM12

• Increased versatility through its unique riser design
• Supports the work piece off the machine table for through milling and drilling
• Designed for use on work cubes and machine tables with tapped holes or T-slot configurations

Technical Data

• Quantity: 1
• Feature: Knife Edge
• Slot: Closed
• [H] Clamp Travel: 0.024"
• Mounting Screws: 1/2"
• Screw Size: M12
• Max Torque: 22.5 N.m
• Holding Force: 16000 N

Country of Origin: United States of America.

#KnifeEdgeLargeSlottedM16

• Increased versatility through its unique riser design
• Supports the work piece off the machine table for through milling and drilling
• Designed for use on work cubes and machine tables with tapped holes or T-slot configurations

Technical Data

• Quantity: 1
• Feature: Knife Edge
• Slot: Closed
• [H] Clamp Travel: 0.050"
• Mounting Screws: 5/8"
• Screw Size: M16
• Max Torque: 40.6 N.m
• Holding Force: 26000 N

Country of Origin: United States of America.

#BluntEdgeMediumCompact516

• Ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece
• The back of the clamp is ground square to the bottom for precise location of parts
• The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp
• Tungsten Carbide coating can be added to increase holding force

Technical Data

• Quantity: 1
• Feature: Blunt Edge
• [H] Clamp Travel: 0.610mm
• Mounting Screws: M8
• Screw Size: 5/16"
• Max Torque: 14.5 ft-lb
• Holding Force: 3600 lbs

Country of Origin: United States of America.

#BluntEdgeLargeCompact38

• Ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece
• The back of the clamp is ground square to the bottom for precise location of parts
• The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp
• Tungsten Carbide coating can be added to increase holding force

Technical Data

• Quantity: 1
• Feature: Blunt Edge
• [H] Clamp Travel: 1.270mm
• Mounting Screws: M10
• Screw Size: 3/8"
• Max Torque: 30 ft-lb
• Holding Force: 6000 lbs

Country of Origin: United States of America.

#BluntEdgeMediumSlotted12

• Increased versatility through its unique riser design
• Supports the work piece off the machine table for through milling and drilling
• Designed for use on work cubes and machine tables with tapped holes or T-slot configurations

Technical Data

• Quantity: 1
• Feature: Blunt Edge
• Slot: Closed
• [H] Clamp Travel: 0.610mm
• Mounting Screws: M12
• Screw Size: 1/2"
• Max Torque: 14.5 ft-lb
• Holding Force: 3600 lbs

Country of Origin: United States of America.

#BluntEdgeLargeSlotted58

• Increased versatility through its unique riser design
• Supports the work piece off the machine table for through milling and drilling
• Designed for use on work cubes and machine tables with tapped holes or T-slot configurations

Technical Data

• Quantity: 1
• Feature: Blunt Edge
• Slot: Closed
• [H] Clamp Travel: 1.270mm
• Mounting Screws: M16
• Screw Size: 5/8"
• Max Torque: 30 ft-lb
• Holding Force: 6000 lbs

Country of Origin: United States of America.

#BluntEdgeMediumCompactM8

• Ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece
• The back of the clamp is ground square to the bottom for precise location of parts
• The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp
• Tungsten Carbide coating can be added to increase holding force

Technical Data

• Quantity: 1
• Feature: Blunt Edge
• [H] Clamp Travel: 0.610mm
• Mounting Screws: M8
• Screw Size: M8
• Max Torque: 22.5 N.m
• Holding Force: 16000 N

Country of Origin: United States of America.

#BluntEdgeLargeCompactM10

• Ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece
• The back of the clamp is ground square to the bottom for precise location of parts
• The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp
• Tungsten Carbide coating can be added to increase holding force

Technical Data

• Quantity: 1
• Feature: Blunt Edge
• [H] Clamp Travel: 1.270mm
• Mounting Screws: M10
• Screw Size: M10
• Max Torque: 40.6 N.m
• Holding Force: 26000 N

Country of Origin: United States of America.

#BluntEdgeMediumSlottedM12

• Increased versatility through its unique riser design
• Supports the work piece off the machine table for through milling and drilling
• Designed for use on work cubes and machine tables with tapped holes or T-slot configurations

Technical Data

• Quantity: 1
• Feature: Blunt Edge
• Slot: Closed
• [H] Clamp Travel: 0.610mm
• Mounting Screws: M12
• Screw Size: M12
• Max Torque: 22.5 N.m
• Holding Force: 16000 N

Country of Origin: United States of America.

#BluntEdgeLargeSlottedM16

• Increased versatility through its unique riser design
• Supports the work piece off the machine table for through milling and drilling
• Designed for use on work cubes and machine tables with tapped holes or T-slot configurations

Technical Data

• Quantity: 1
• Feature: Blunt Edge
• Slot: Closed
• [H] Clamp Travel: 1.270mm
• Mounting Screws: M16
• Screw Size: M16
• Max Torque: 40.6 N.m
• Holding Force: 26000 N

Country of Origin: United States of America.
